PZG series

Cranked

PZG series ,

Product
Description

PZG 18: with towing eye Ø 40 mm (DIN 74054-40 A) as standard
PZG 32: with towing eye Ø 40 mm (DIN 74054-40 A) and cranked h = 150 mm as standard. All drawbars are also available with towing eye Ø 50 mm (DIN 74053-50 A)

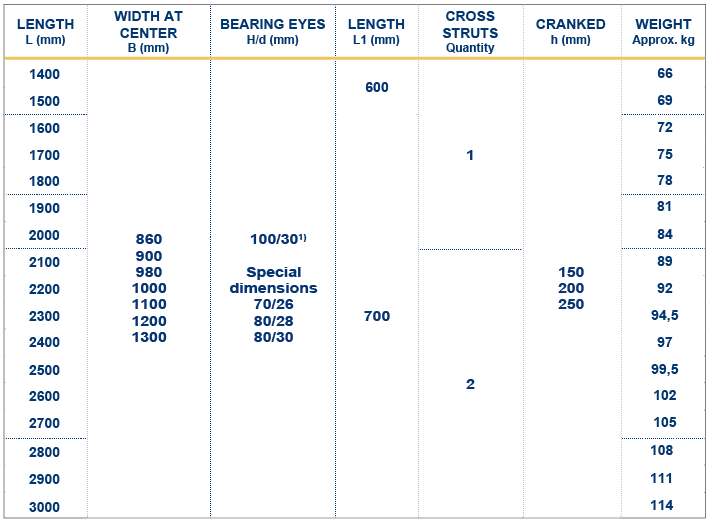

PZG 48: with heavy-duty towing eye Ø 50 mm (type 56) as standard
In all standard versions, the bearing eyes have plastic bushes. Other dimensions and towing eyes are available on request.

Choose variant

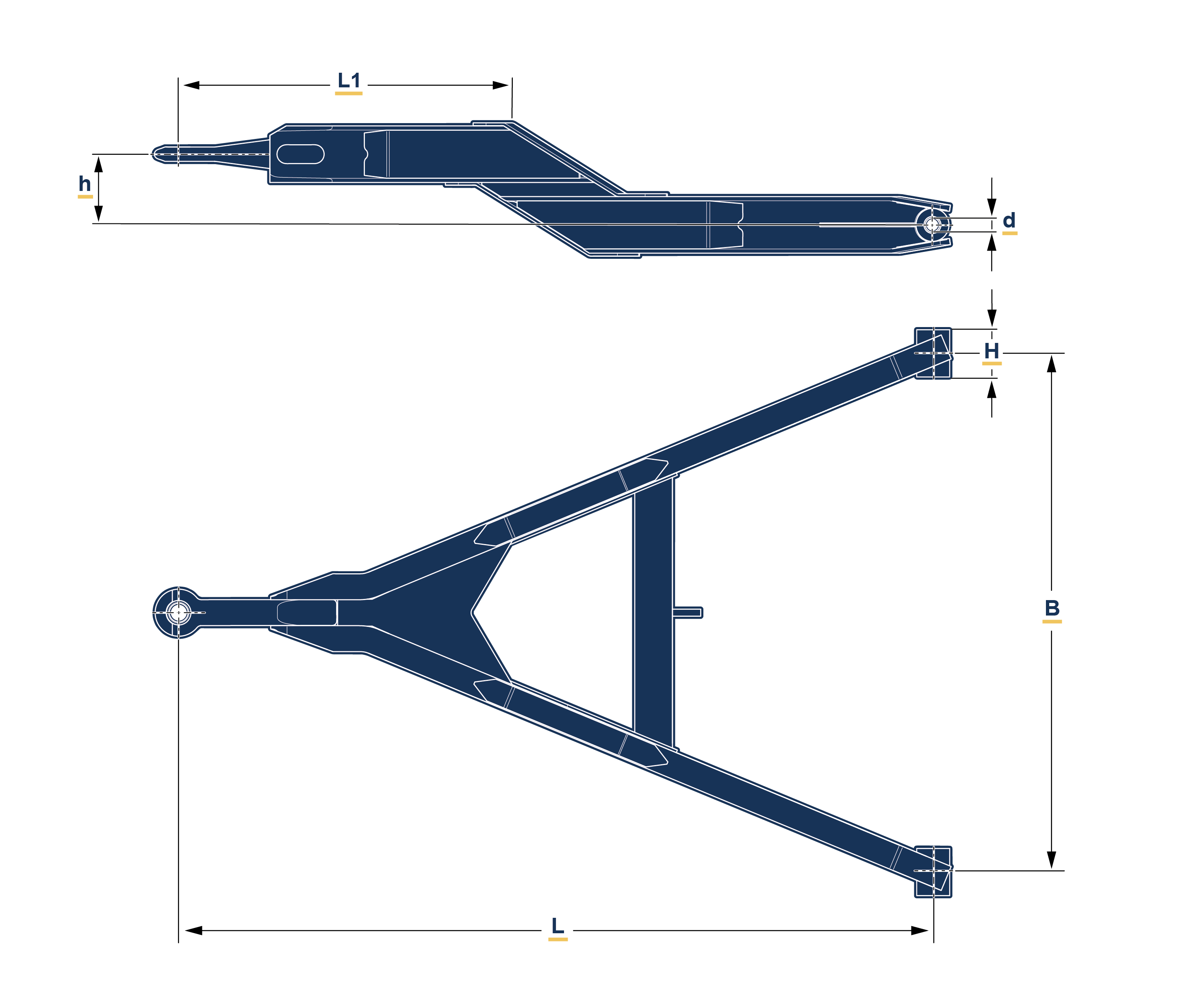

PZG - dimensions_Ny-01

                                                       SINGLE AXLE

Max axle load (t)

DZ min. (mm)

         9

                                                        TWO AXLES

Max axle load (t)

RA max. (mm)

DZ min. (mm)


PZG - dimensions_Ny-01

                                                       SINGLE AXLE

Max axle load (t)

DZ min. (mm)



                                                        TWO AXLES

Max axle load (t)

RA max. (mm)

DZ min. (mm)

            16        1360       1200
PZG - dimensions_Ny-01

                                                       SINGLE AXLE

Max axle load (t)

DZ min. (mm)



                                                        TWO AXLES

Max axle load (t)

RA max. (mm)

DZ min. (mm)

            24        1360       1200
