PZSG series

With swivelling eye and cranked

PZSG series ,

Product
Description

Available as standard with swivelling towing eye Ø 40 mm (DIN 74054-40A) and heavy-duty towing eye Ø 50 mm (type 56), cranked h =150 mm.
In all standard versions, the bearing eyes have plastic bushes. Other dimensions and towing eyes are available on request.

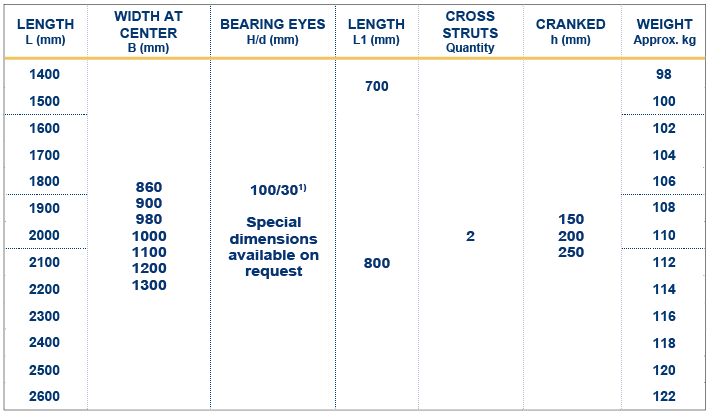

PZSG - dimensions_Ny-01

                                                       SINGLE AXLE

Max axle load (t)

DZ min. (mm)



                                                        TWO AXLES

Max axle load (t)

RA max. (mm)

DZ min. (mm)

            24
