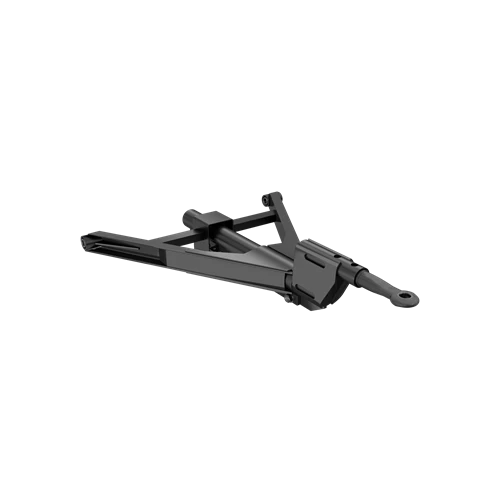

PZLG 32 series

Length-adjustable and cranked

PZLG 32 series ,

Product
Description

With towing eye Ø 40 mm (DIN 74054-40 A), cranked h = 150 mm and length adjustment 12 x 50 mm as standard.
All drawbars are also available with towing eye Ø 50 mm (DIN 74053-50 A).
Also available with locking nuts on request (version V). In all standard versions, the bearing eyes have plastic bushes.
Other dimensions and towing eyes are available on request.

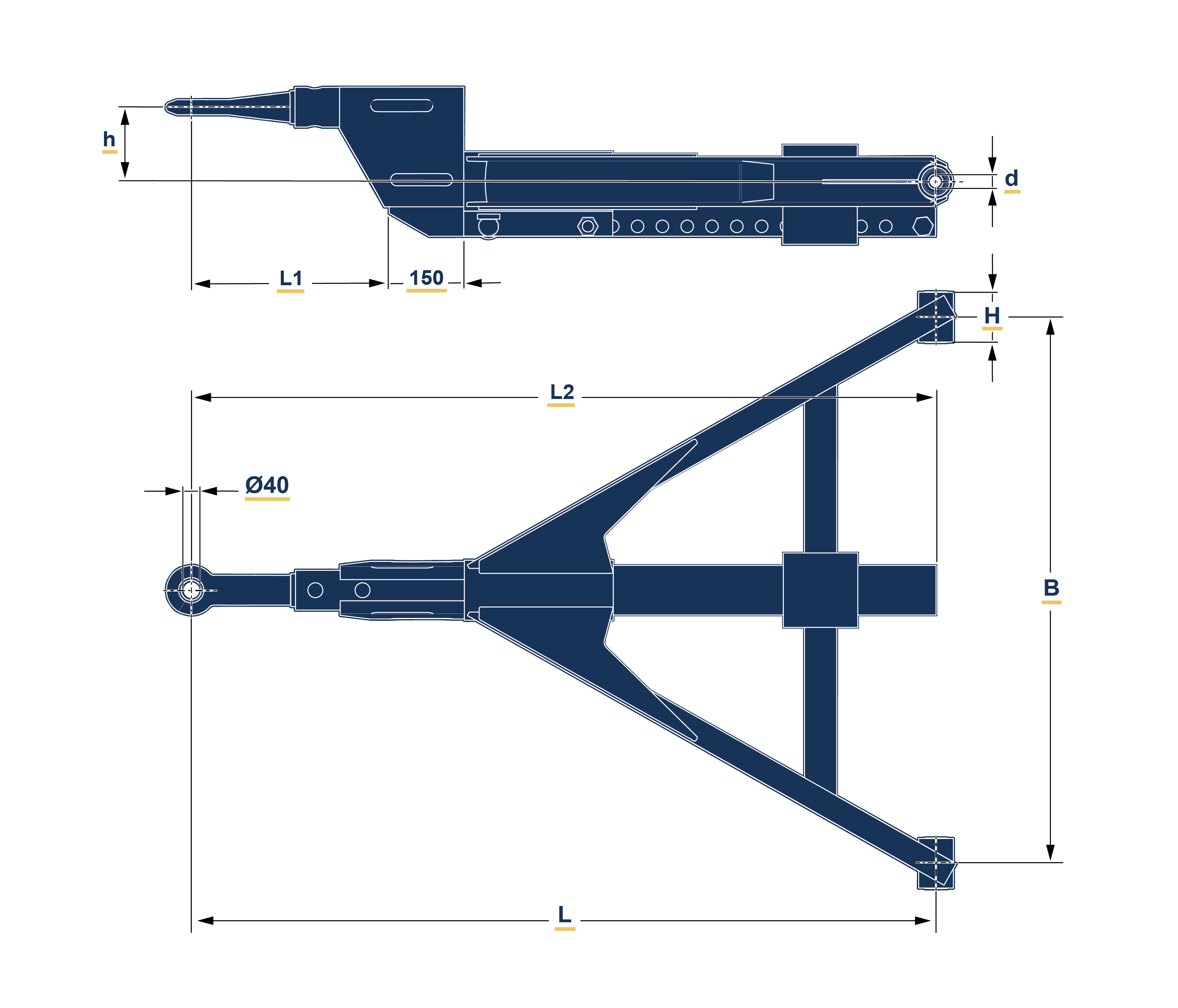

PZLG - dimensions_Ny-01

                                                       SINGLE AXLE

Max axle load (t)

DZ min. (mm)
         10     1200

                                                        TWO AXLES

Max axle load (t)

RA max. (mm)

DZ min. (mm)

PZL - detail_english

Adjustable versions

Standard adjustable version "E" with bolt and nut. Also available with locking nuts on request, version "V".
