PZGL series

Cranked and length adjustable

PZGL series ,

Product
Description

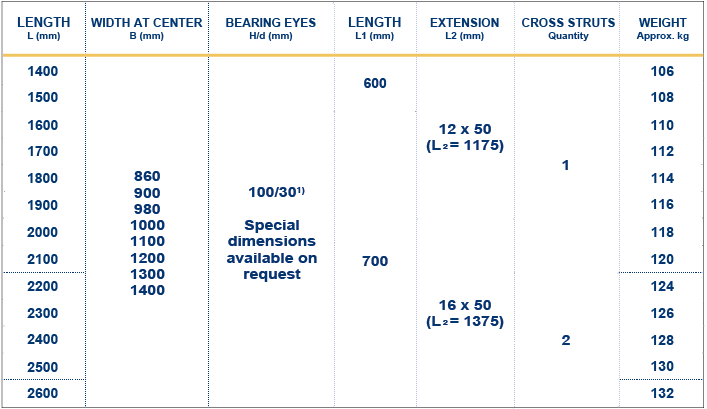

PZGL 32: with towing eye Ø 40 mm (DIN 74054-40 A), cranked h = 150 mm and length adjustment 12 x 50 mm as standard. All drawbars are also available with towing eye Ø 50 mm (DIN 74053-50 A). Also available with locking nuts on request (version V)

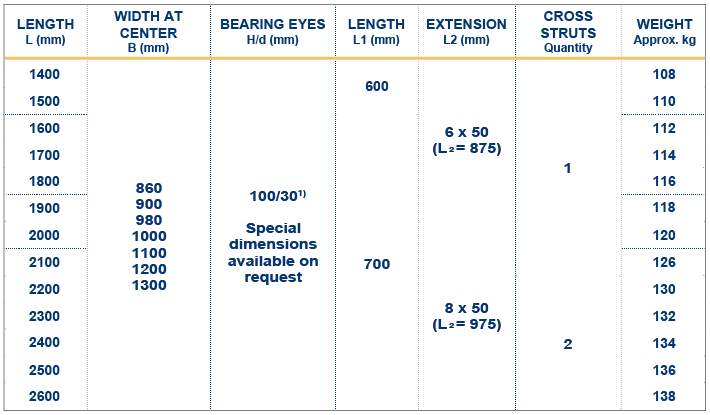

PZGL 48: with heavy-duty towing eye Ø50 mm (type 56) as standard In all standard versions, the bearing eyes have plastic bushes.

Other dimensions and towing eyes are available on request.

Choose variant

PZGL - dimensionsNy-01

                                                      SINGLE AXLE

Max axle load (t)

DZ min. (mm)
         10

                                                      TWO AXLES

Max axle load (t)

RA max. (mm)

DZ min. (mm)

PZLG - detail_gul markering-01

Adjustable versions

Standard adjustable version "E" with bolt and nut. Also available with locking nuts on request, version "V".

PZGL - dimensionsNy-01

                                                       SINGLE AXLE

Max axle load (t)

DZ min. (mm)


                                                        TWO AXLES

Max axle load (t)

RA max. (mm)

DZ min. (mm)
            24          1360       1200
