TBZ series

Drawbars up to 48 tonne

The TBZ27 and TBZ32 series has a towing eye with Ø 40 mm (DIN 74054-40A) as standard. All drawbars are also available with other towing eyes like Ø 50 mm (DIN 74053-50A). In all standard versions, the bearing eyes have plastic bushes. Other dimensions and towing eyes and bushes are available on request.

The TBZ48 series is the perfect link between trucks and trailers with turntable steering and a gross weight of up to 48 tonnes.

- ECE certified
- Treated with zinc phosphate, with cataphoretic dip-coating (KTLZn).
- High level of corrosion resistance due to galvanized towing bars on length-adjustable drawbars.

Choose variant

Variant changed

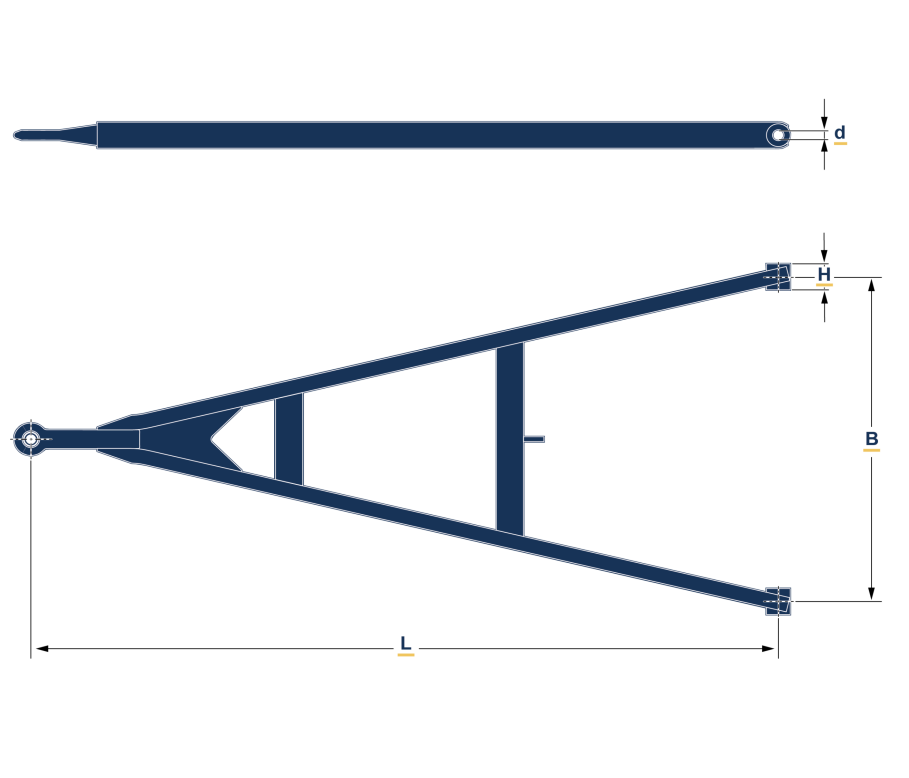

TBZ27 - dimensions-01

                                                       SINGLE AXLE

Max axle load (t)

DZ min. (mm)

         12

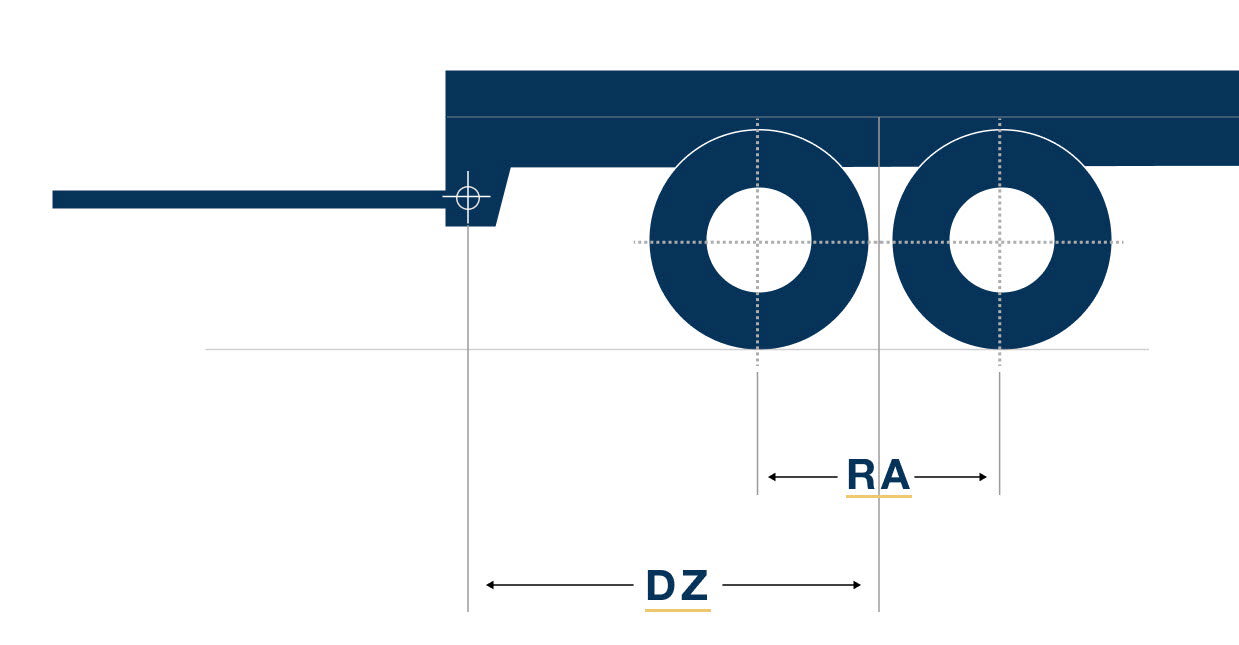

                                                        TWO AXLES

Max axle load (t)

RA max. (mm)

DZ min. (mm)

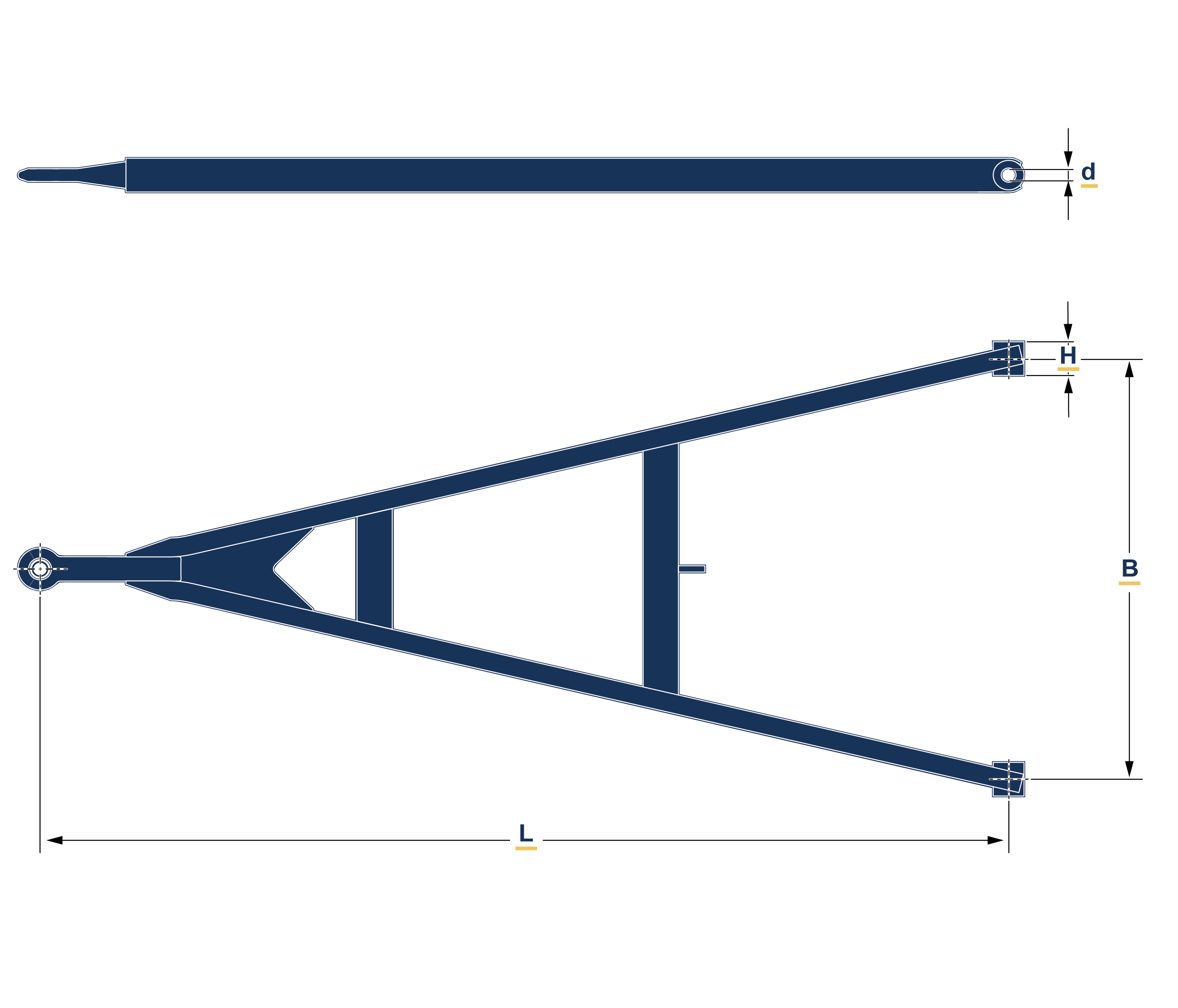

TBZ27 - dimensions-01

                                                       SINGLE AXLE

Max axle load (t)

DZ min. (mm)

         12        600

                                                        TWO AXLES

Max axle load (t)

RA max. (mm)

DZ min. (mm)

            16        1360       1200

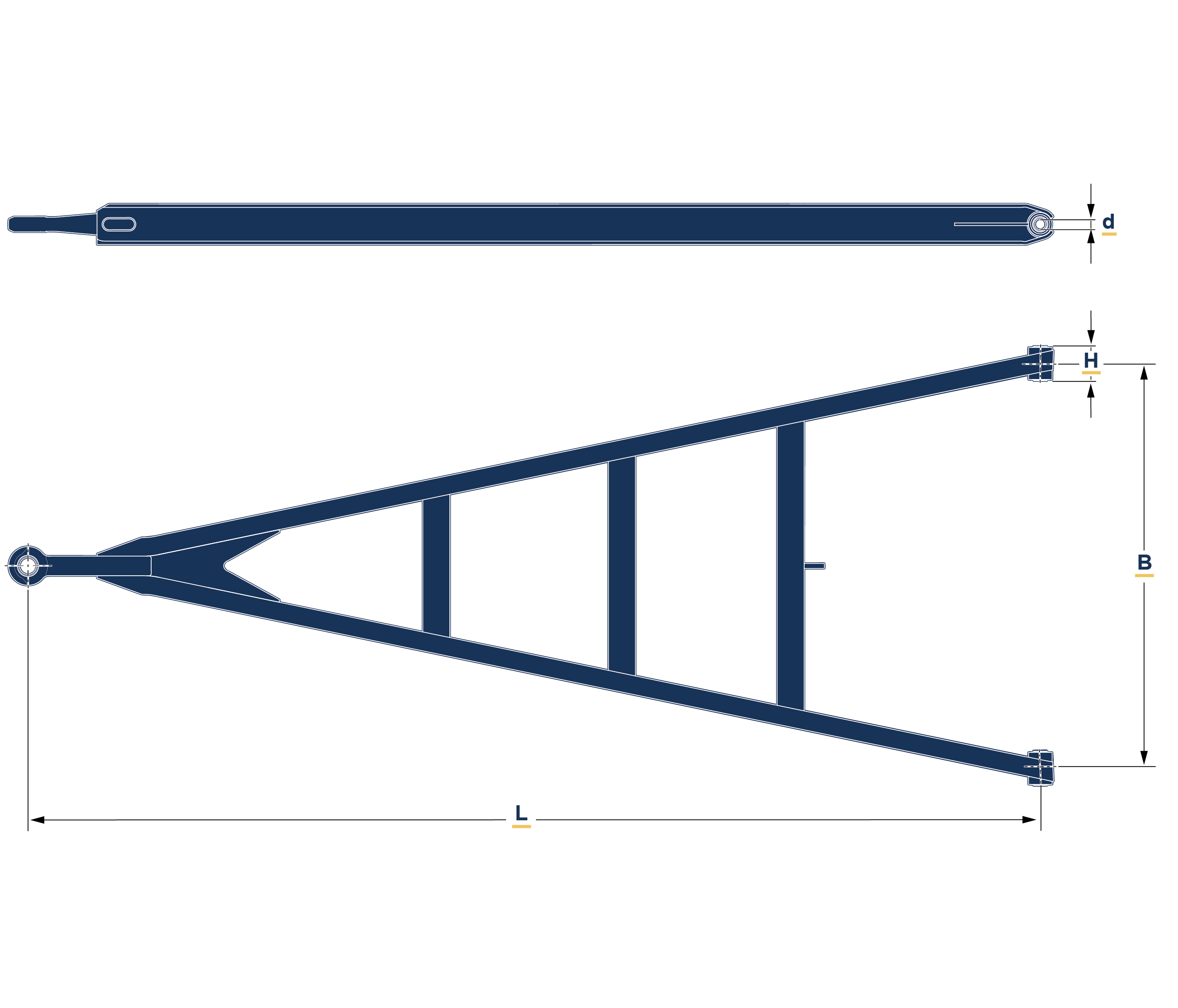

TBZ48 - dimensions-01

                                                       SINGLE AXLE

Max axle load (t)

DZ min. (mm)



                                                        TWO AXLES

Max axle load (t)

RA max. (mm)

DZ min. (mm)

            24        1360       1200
}
