PZL series

Length-adjustable and cranked

With towing eye Ø 40 mm (DIN 74054-40 A) and length adjustment 12 x 50 mm as standard. All drawbars are also available with towing eye Ø 50 mm (DIN 74053-50 A). Also available with locking nuts on request (version V).
PZL 48: with heavy-duty towing eye Ø 50 mm (type 56) and length adjustment 6 x 100 mm as standard. Also available with locking nuts on request (version V)

In all standard versions, the bearing eyes have plastic bushes. Other dimensions and towing eyes are available on request.

Choose variant

Variant changed

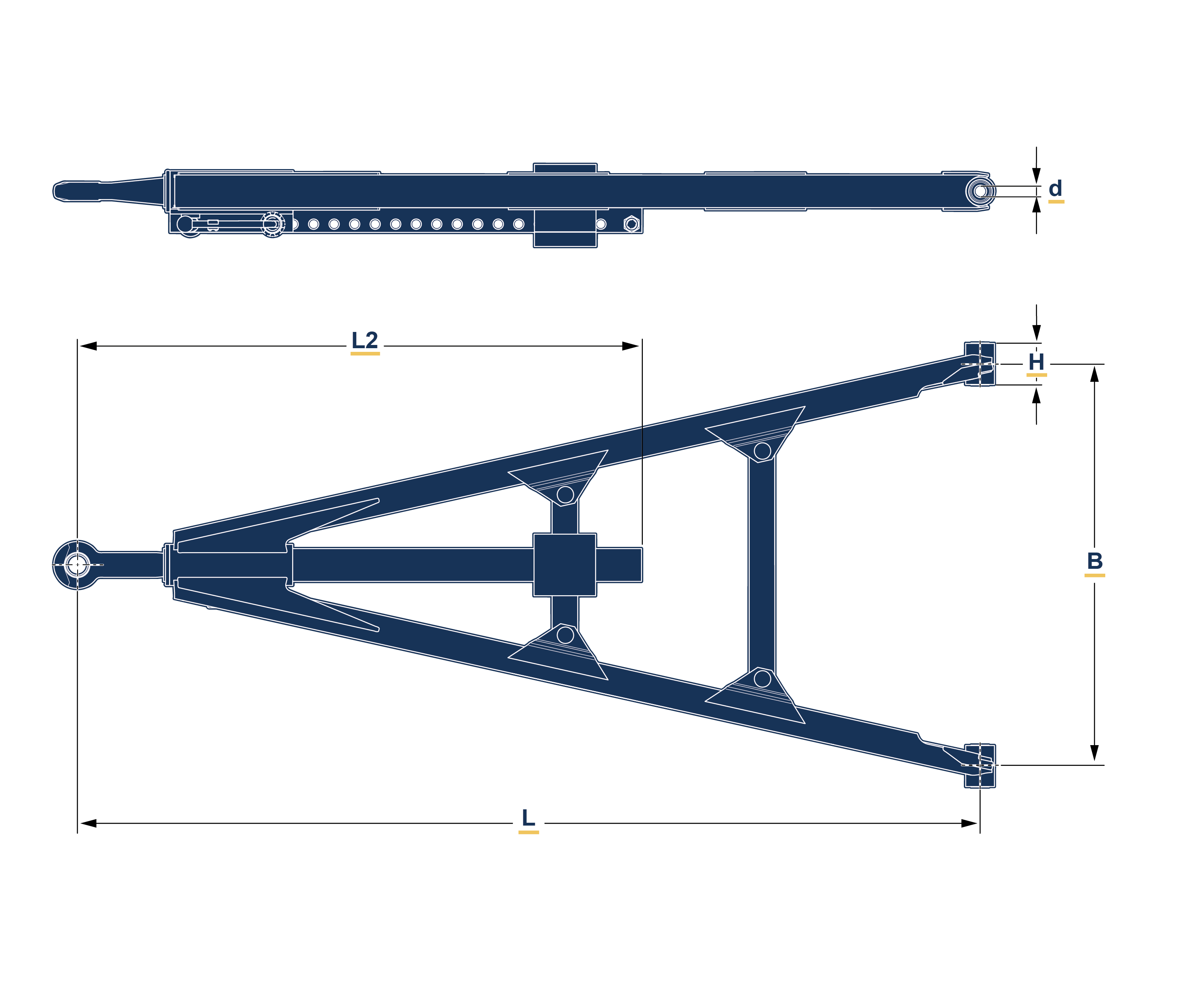

PZL - dimensions_Ny-01

                                                       SINGLE AXLE

Max axle load (t)

DZ min. (mm)

         10     1200

                                                        TWO AXLES

Max axle load (t)

RA max. (mm)

DZ min. (mm)

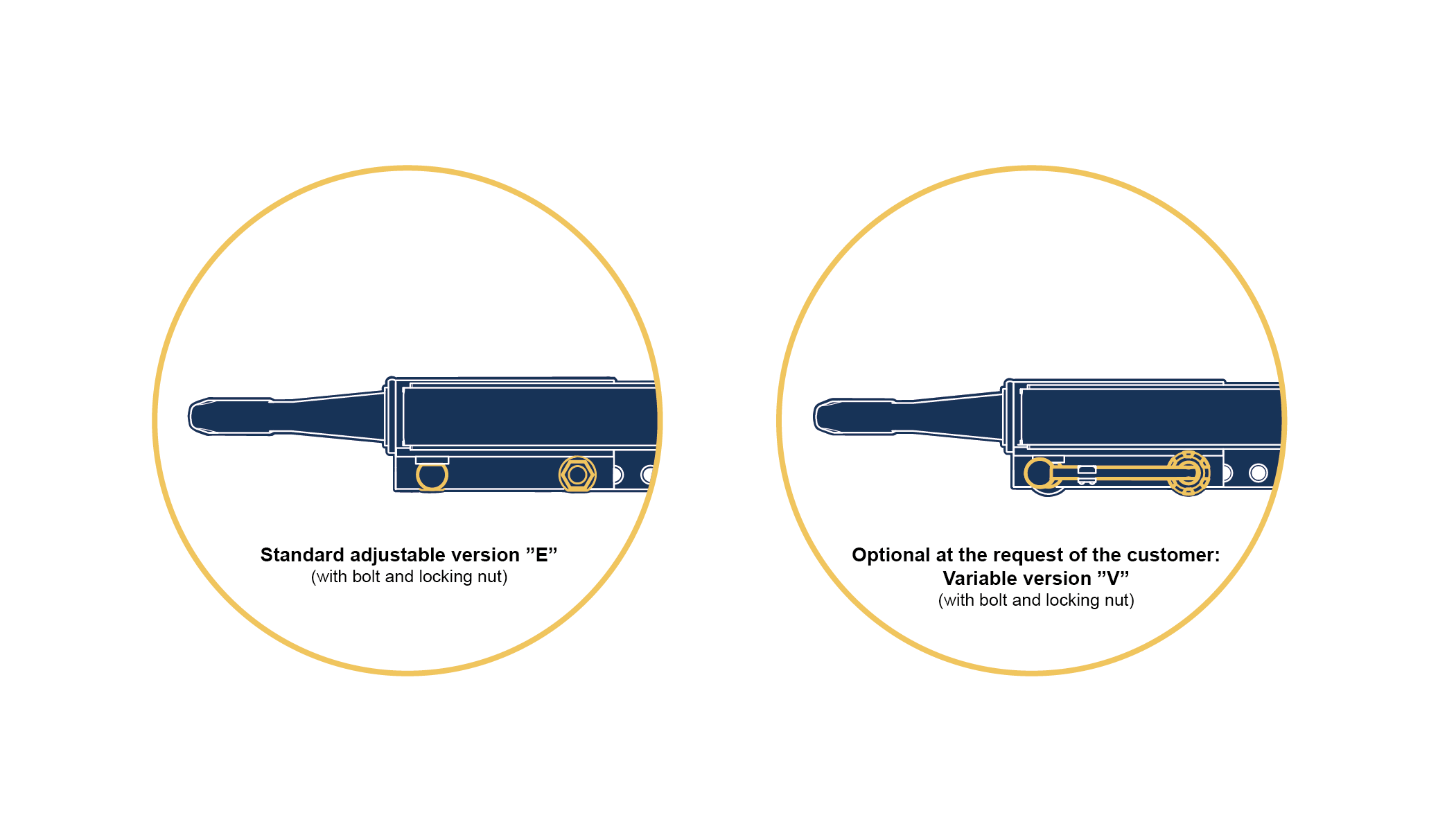

PZL - detail_english

Adjustable versions

Standard adjustable version "E" with bolt and nut. Also available with locking nuts on request, version "V".

PZL - dimensions_Ny-01

                                                       SINGLE AXLE

Max axle load (t)

DZ min. (mm)

         12

                                                        TWO AXLES

Max axle load (t)

RA max. (mm)

DZ min. (mm)


PZL - detail_english

Adjustable versions

Standard adjustable version "E" with bolt and nut. Also available with locking nuts on request, version "V".

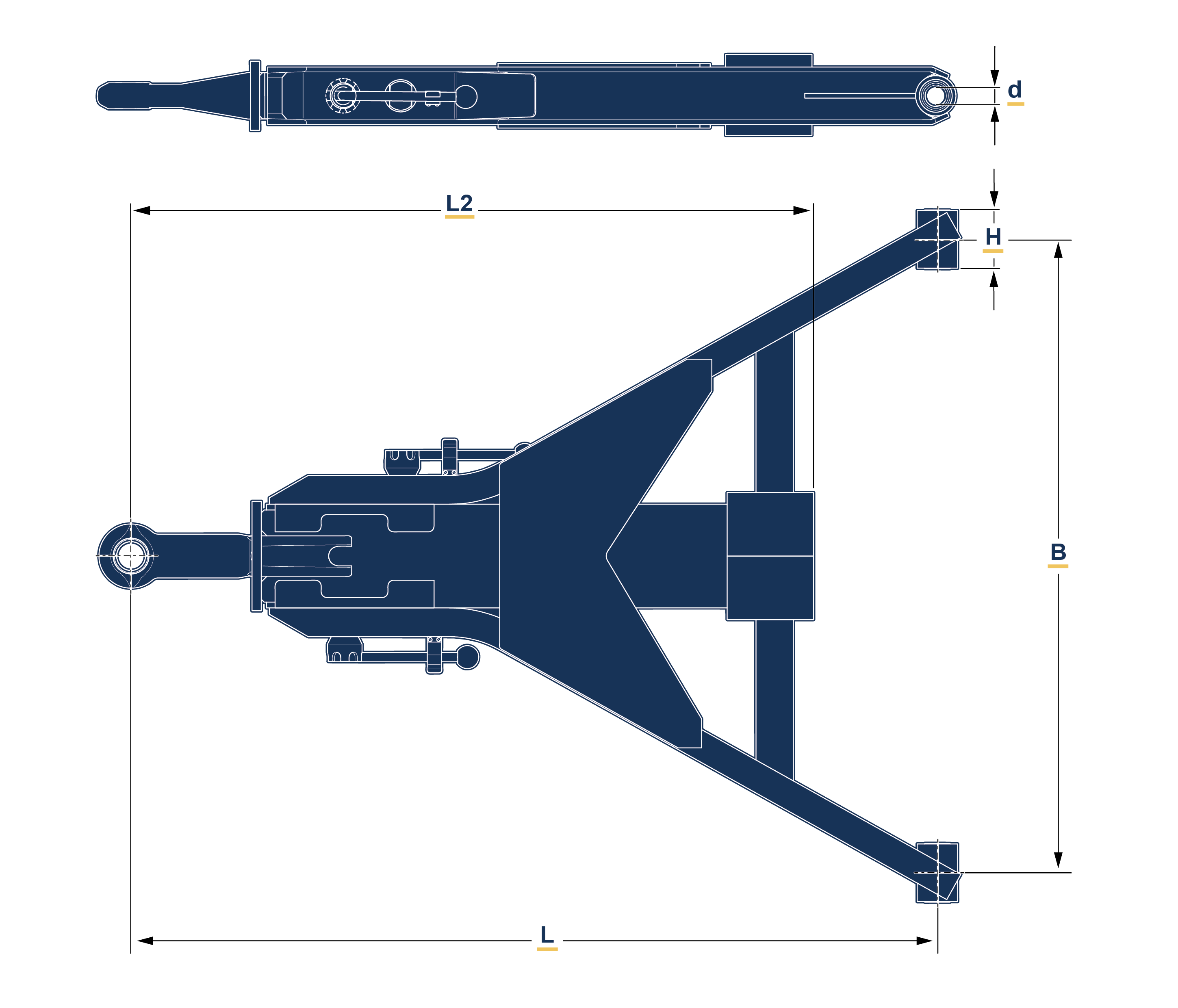

PZL 48- dimensions_Ny-01

                                                       SINGLE AXLE

Max axle load (t)

DZ min. (mm)

               1200

                                                        TWO AXLES

Max axle load (t)

RA max. (mm)

DZ min. (mm)

            24       1360       1200
PZL - detail_english

Adjustable versions

Standard adjustable version "E" with bolt and nut. Also available with locking nuts on request, version "V".

}
