Ringfeder height adjustment and support device Return spring with turnbuckle

Ringfeder height adjustment and support device Return spring with turnbuckle ,

Product
Description

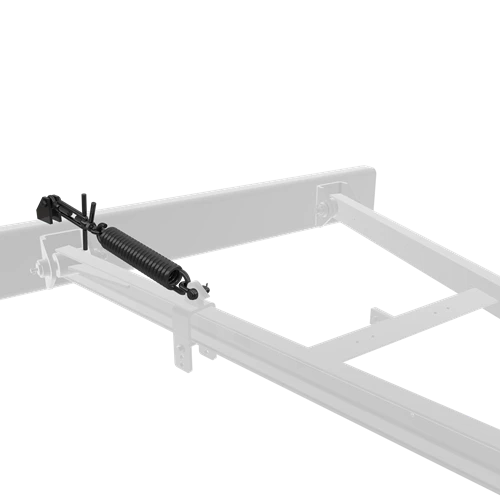

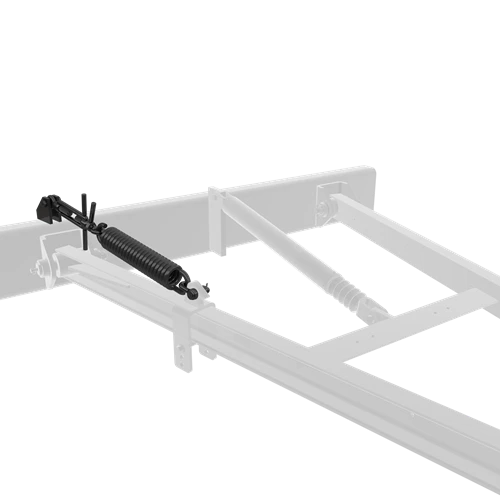

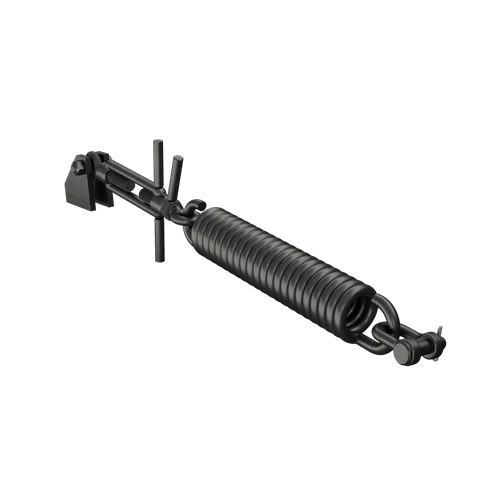

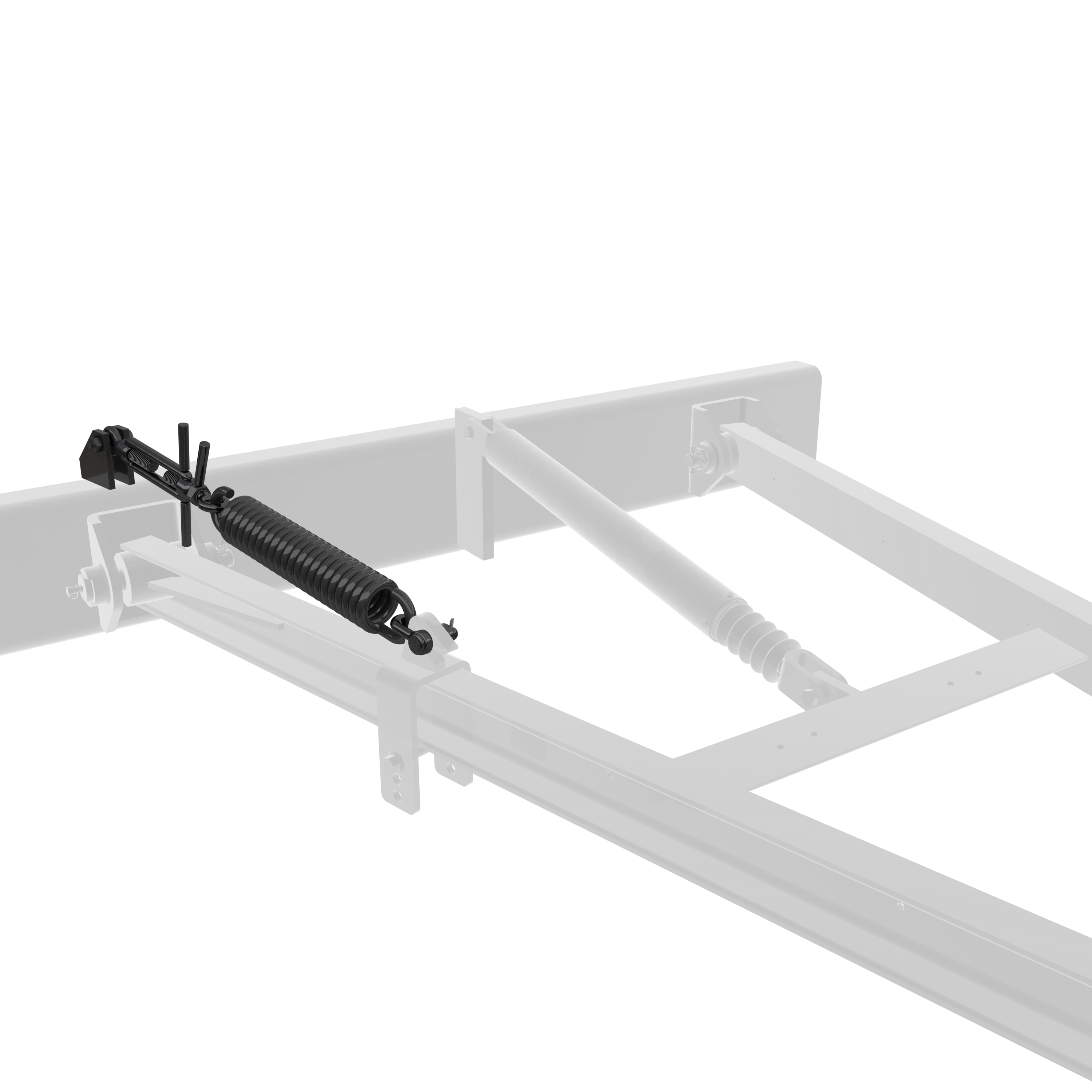

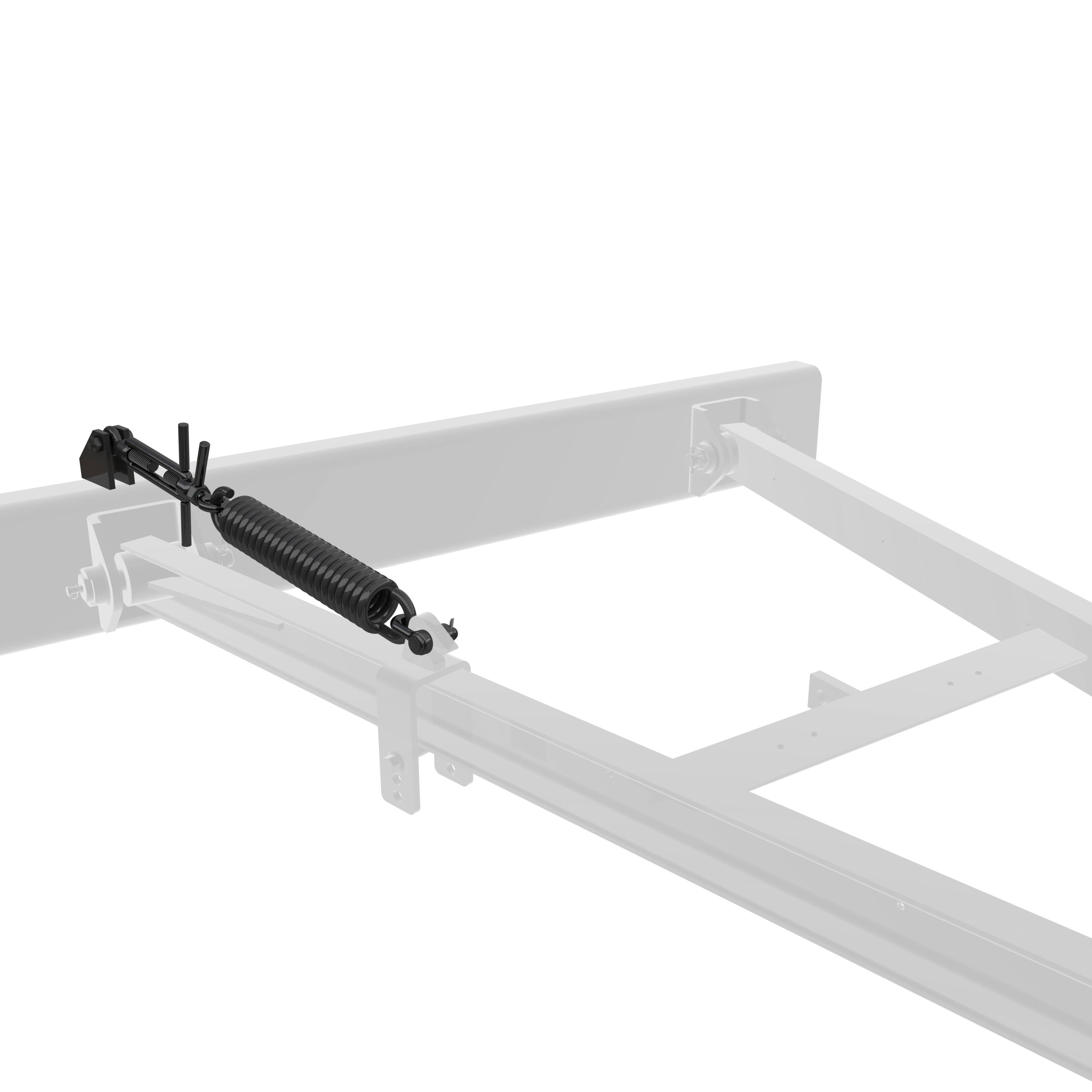

The return spring with turnbuckle can be used directly as a height adjustment device. The height is adjusted by turning the turnbuckle. The return spring used means that it is usually sufficient to use one return spring even for heavy drawbars (see diagram). In combination with Klemmfix 72, the return spring with turnbuckle is also used as a height support device.
